产品中心 >> 丝网系列

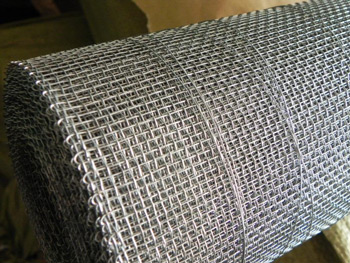

方眼网





Material:Galvanized iron wire, or stainless steel wire

Property: Square Wire Mesh is made of selected low carbon iron wire with precision construction,uniform mesh, fine rust-resisting and durable function.

Packing:In rolls,wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

Uses: Square Wire Mesh is widely used in industries and constructions to sieve grain powder,filter liquid and gas,for other purposes like safe guards on machinery enclosures.

Besides,it is widely applied for the substitute of wood strips in making wall and ceiling.

Specifications: Please refer to lists below for reference. Sizes not listed available at customers request.

Assortments available:

<1>Crimped square wire mesh

<2>Standard square wire mesh

<3>Hot-dipped galvanized after woven square wire mesh

<4>Galvanized after woven square wire mesh

<5>Galvanized before woven square wire mesh

<6> Iron Square Wire Mesh

Square Wire, Crimped Wire

Material : Good quality low-carbon iron wire and stainless steel wire etc.

Assortments available:

● Square wire mesh, electro galvanized before weaving

● Square wire mesh, electro galvanized after weaving

● Square wire mesh, hot-dipped galvanized before weaving

● Square wire mesh, hot-dipped galvanized after weaving

● Square wire mesh, PVC Coated mesh

● Square wire mesh, in Crimped wire weaving

● Stainless Steel Square Wire Mesh

Application : Square Wire Mesh is mostly used in as windows screening,

safety guards on machinery enclosures. It's also widely used in filtering liquid and gas, sieving grain.

Specifications of Square Wire Mesh

Mesh hole & Wire gauge (BWG)

Mesh hole & Wire gauge (BWG)

4meshx 20#,21#,22#, 23#,24#,25#,26#,27#

22meshx 30#,31#,32#,33#,34#,35#,36#

5meshx 20#,21#,22#, 23#,24#,25#,26#,27#,28#

24mesh x 31#,32#,33#,34#,35#,36#

6meshx 21#,21#,22#, 23#,24#,25#,26#,27#,28#,29#

26mesh x 32#,33#,34#,35#,36#

8meshx 22#, 23#,24#,25#,26#,27#,28#,29#,30#,31#

28mesh x 32#,33#,34#,35#,36#

10meshx22#,23#,24#,25#,26#,27#,28#,29#,30#,31#,32#

30mesh x 32#,33#,34#,35#,36#

12meshx23#,24#,25#,26#,27#,28#,29#,30#,31#,32#,33#

32mesh x 33#,34#,35#,36#

14meshx 27#,28#,29#,30#,31#,32#,33#

36mesh x 33#,34#,35#,36#, 37#

16meshx 27#,28#,29#,30#,31#,32#,33#,34#,35#

40mesh x 35#,36#, 37#

20meshx 29#,30#,31#,32#,33#,34#,35#

50mesh x 36#, 37# , 38#

Note: The Width and Length of mesh could make according to customers’ request.

Specifications of Woven with wave wires

Mesh Diameter

Wire Gauge

Width &Length

Mesh Diameter

Wire Gauge

Width &Length

0.2cm

BWG 25-20

1.5M*30M

0.8cm

BWG 22-17

1.5M*30M

0.3cm

BWG 27-18

1.5M*30M

1.0cm

BWG 21-16

1.5M*30M

0.4cm

BWG 26-18

1.5M*30M

1.2cm

BWG 20-16

1.5M*30M

0.5cm

BWG 25-17

1.5M*30M

1.5cm

BWG 19-15

1.5M*30M

0.6cm

BWG 24-17

1.5M*30M

2.0cm

BWG 18-14

1.5M*30M

0.7cm

BWG 23-17

1.5M*30M

2.5cm

BWG 17-13

1.5M*30M
